FnO Dev Copilot — D365FO MCP Server

Problem

D365FO is a huge ERP with thousands of tables, fields, EDTs, enums, relations, classes, and forms. X++ developers have no good AI assistant. Generic copilots are weak on X++ and the D365FO object model, and answering basic questions means opening Visual Studio or digging through sprawling docs: which tables participate in this process, how do two tables relate, what fields does this table have.

Before building tooling on top of the dataset, every relation had to be traceable to a source and mechanically verified.

Role

Solo author. Dataset forensics, the verification pipeline, the MCP server implementation, and the integration into my personal AI agent setup.

Solution

Verification first. A pipeline traced every one of the 39,380 relations to a source and labeled it with a verdict, provenance, and reason. Ground truth: a local D365FO 10.0.2645.32 source mirror (12 models), Microsoft Learn, and the high-trust alexdmeyer AX2012 dataset. Nothing was deleted. 7,067 SUSPECT entries went to quarantine, then were resolved or re-reasoned. 39,380 in, 39,380 out.

The provenance check found zero AI-crawl relations in the dataset. Every entry traces to the alexdmeyer tier. But the pipeline still caught 1,768 SUSPECT relations against real metadata: field sets that differ from actual relations, undocumented tables, even 22 cases where Microsoft’s own docs contradicted the metadata. Those stay honestly labeled instead of being silently trusted.

The MCP server. Python with the official MCP SDK, stdio transport, four tools:

find_table — search tables by name or field
trace_relation_path — shortest relation path between two tables through the verified graph
explain_element — everything known about a table: fields, relations, notes
stats — dataset coverage and verdict counts

Real output from the running server:

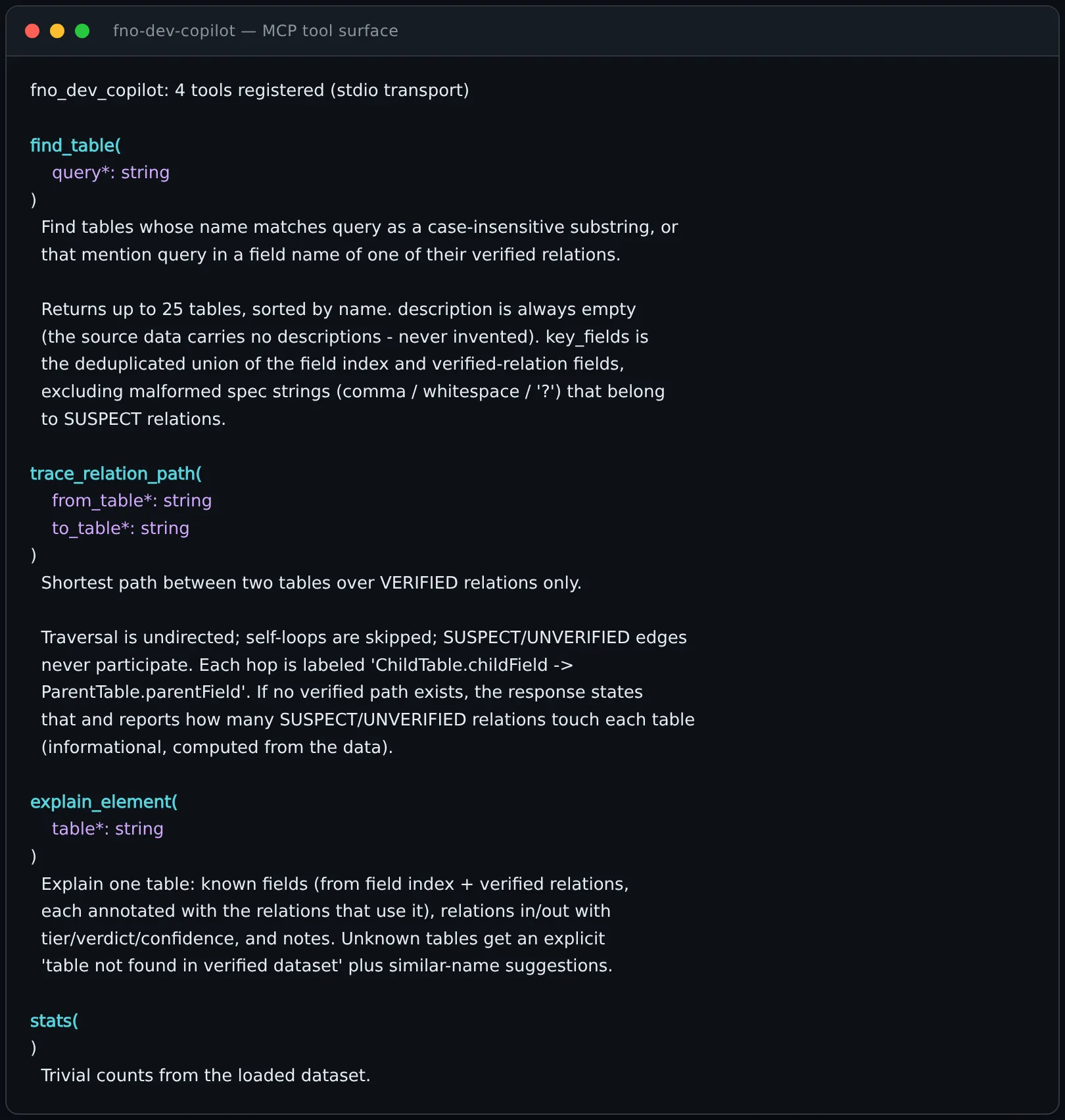

The four tools fno_dev_copilot registers over stdio

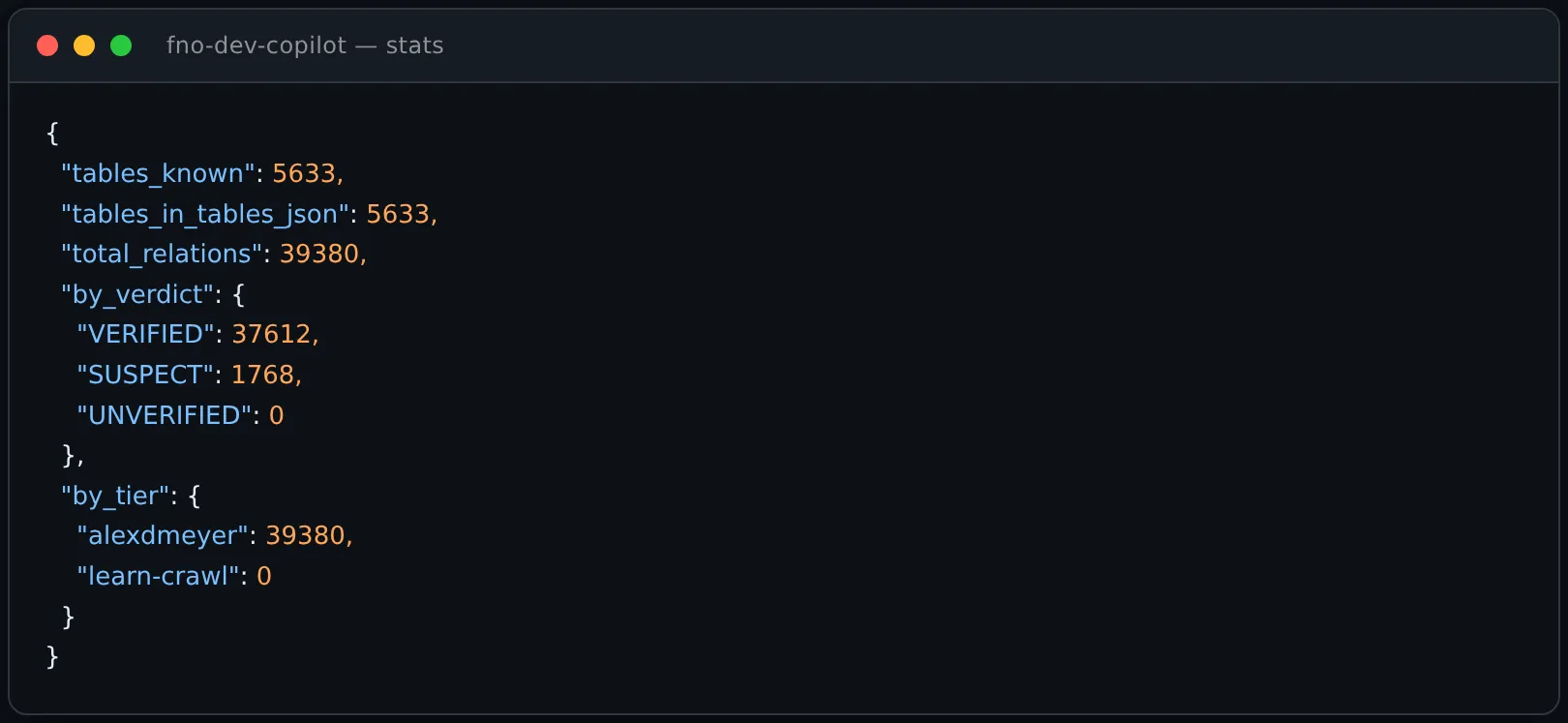

stats: 39,380 relations, 37,612 verified across 5,633 tables

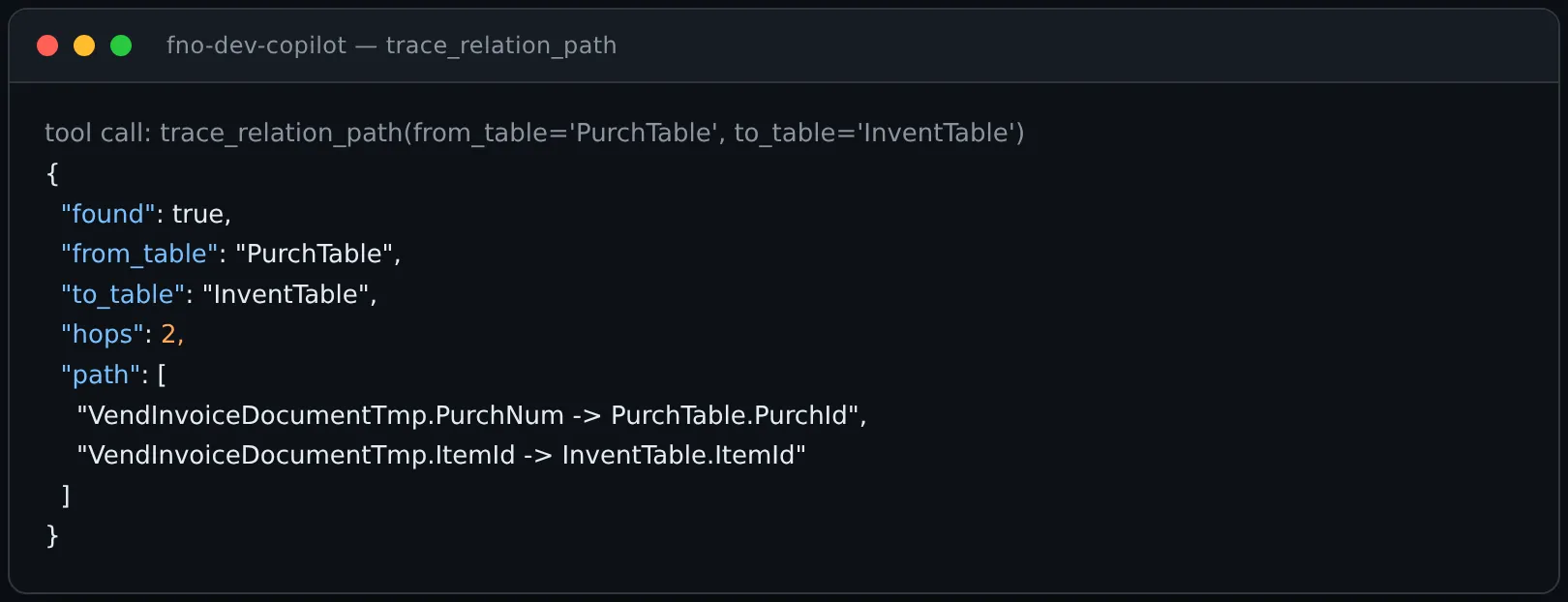

trace_relation_path finding a verified path from PurchTable to InventTable

Integration. Registered in OpenCode as /fno slash commands (/fno, /fno-explore, /fno-trace, /fno-explain, /fno-stats) and wired into my D365FO architect agent as a mandatory pre-SQL verification step where table, field, and join claims must be checked against the verified dataset before any SQL or X++ is written. The SQL-first principle is enforced at the agent level.

An OpenCode agent answering a real D365FO question against the verified graph:

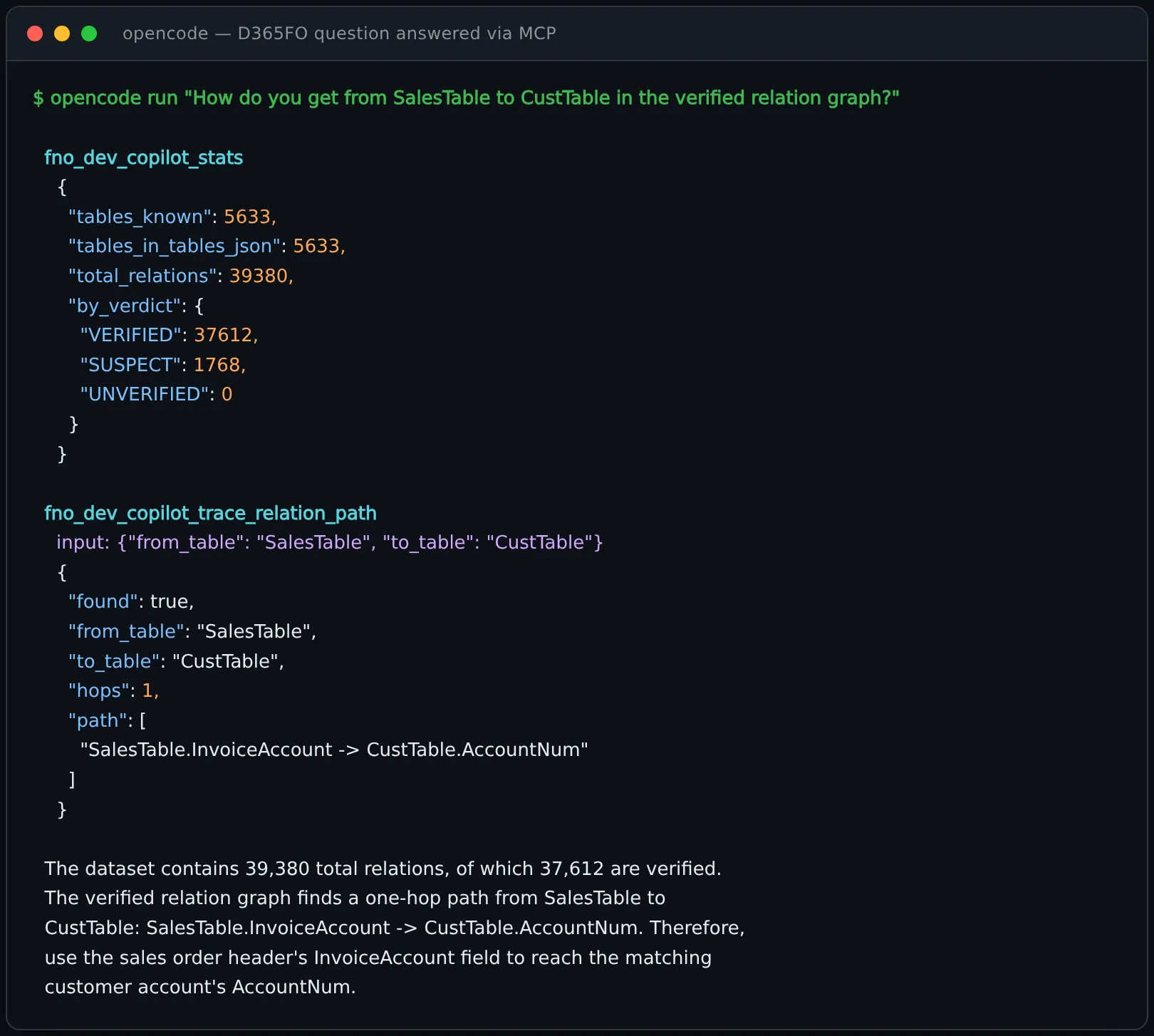

OpenCode agent answering a D365FO question with the MCP tools

Stack

Language: Python (official MCP SDK)
Tooling: uv
Ground truth: D365FO 10.0.2645.32 source mirror, Microsoft Learn, alexdmeyer MicrosoftDynamicsTableAssociations
Transport: stdio — works with OpenCode, Claude Code, Cursor, and my Hermes agents
Deployment: local server spawned by the agent tooling, with the verified subset also serving FnO Navigator’s path finder

Key decisions

Zero fabrication as a hard rule: a relation that cannot be confirmed stays SUSPECT, never promoted to fact
Quarantine instead of delete: nothing is silently dropped from the dataset
Version-anchored ground truth: verified against real 10.0.2645.32 metadata rather than prose docs, which we caught contradicting the metadata in 22 cases
Local over remote: a stdio server is instant, offline, and rate-limit-free compared to remote docs MCPs

Status

Live in my personal setup since 2026-08-14: the /fno command set in OpenCode and the D365FO architect agent’s verification flow. The VERIFIED-only graph (37,612 edges) powers FnO Navigator’s table path finder today.
